Item No.: S5 PRO

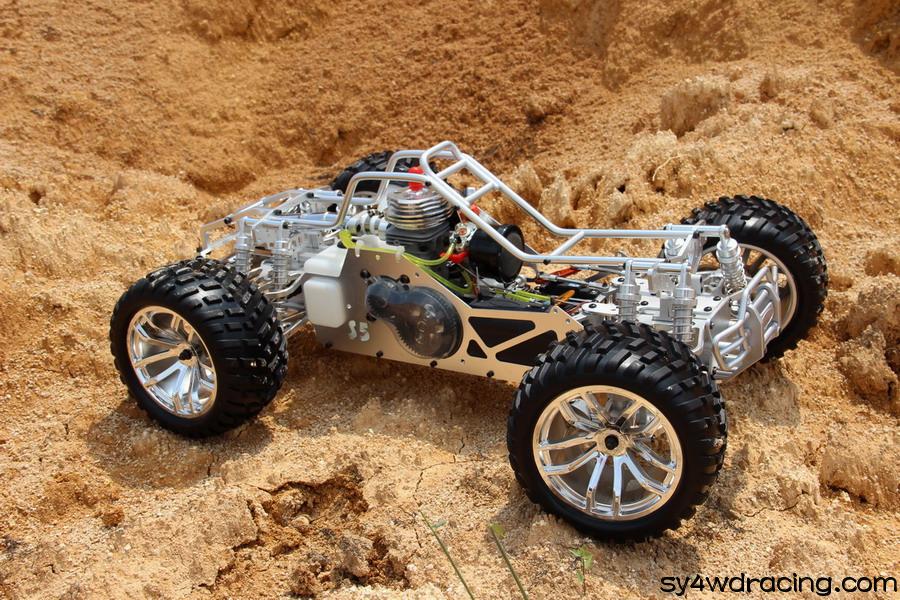

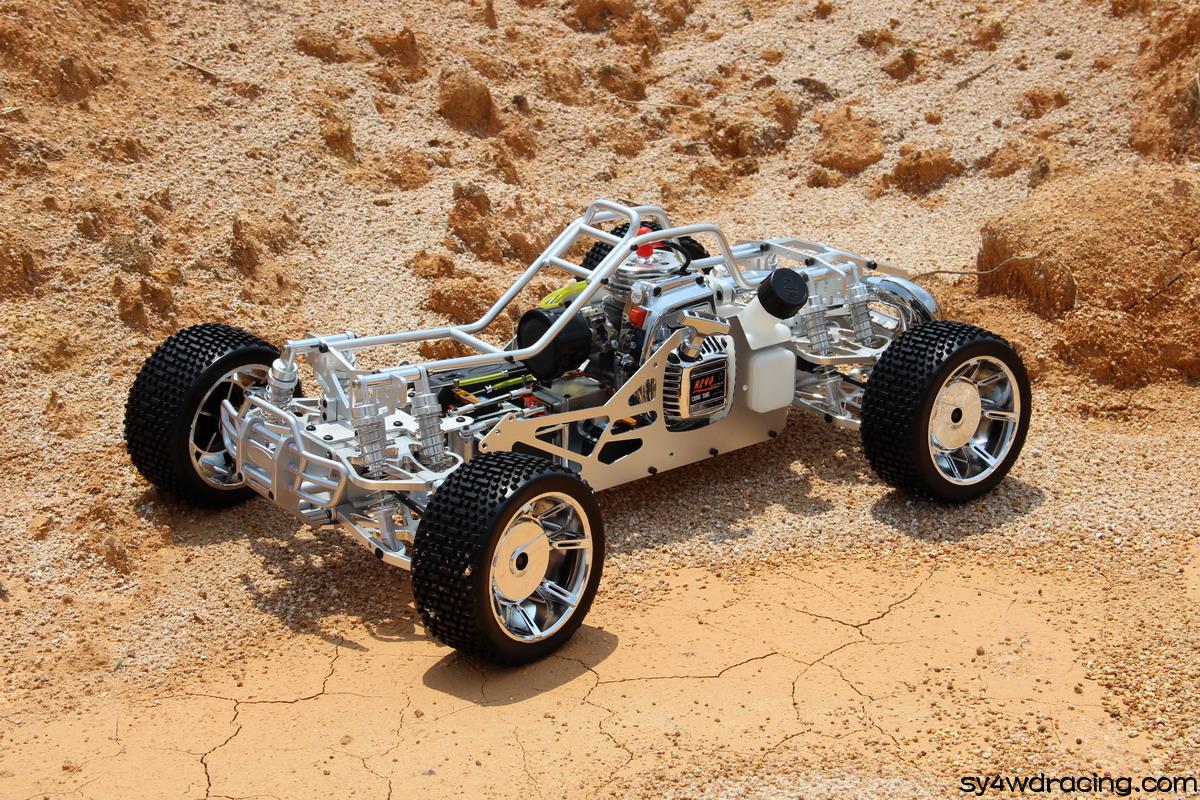

Name: 1/5th 4WD Gas Short-course Truck- With Reverse Function

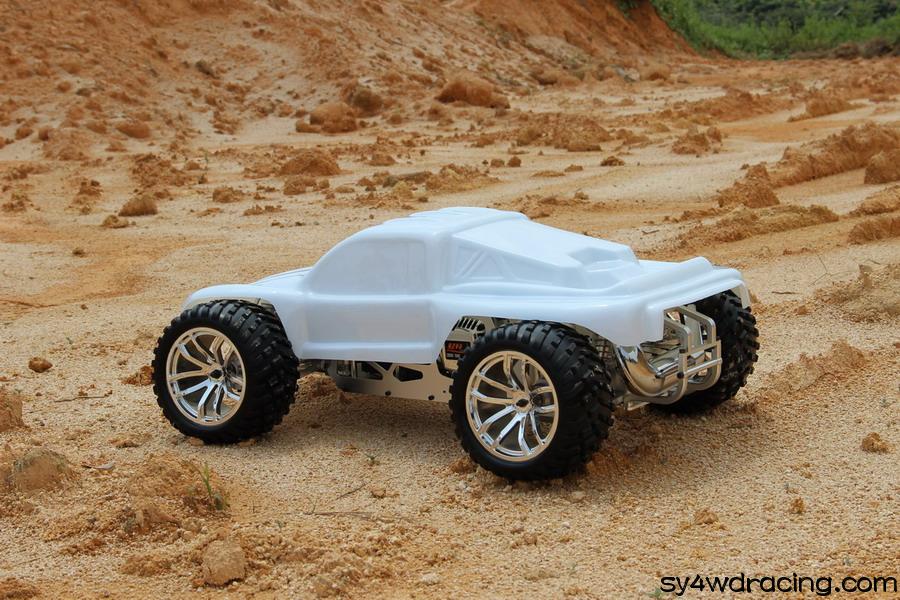

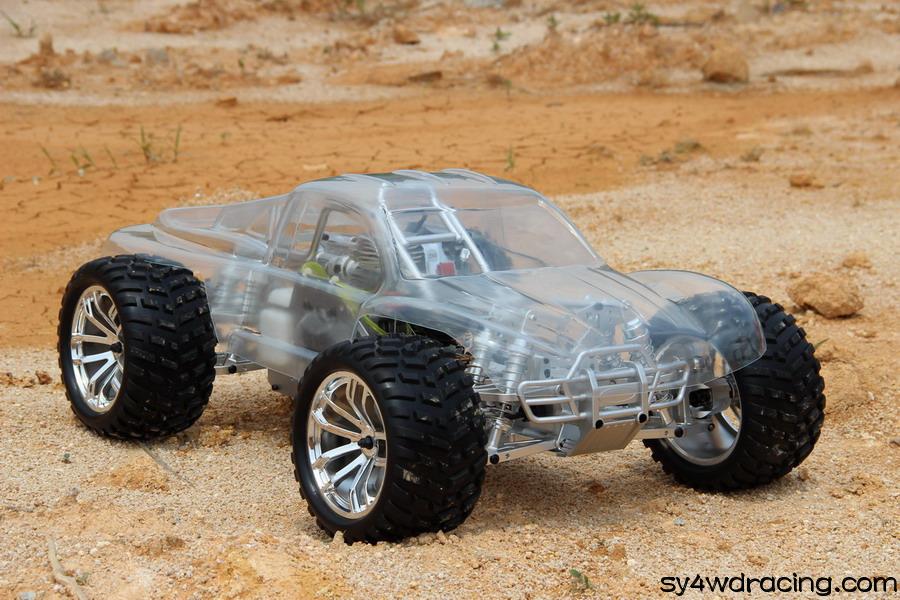

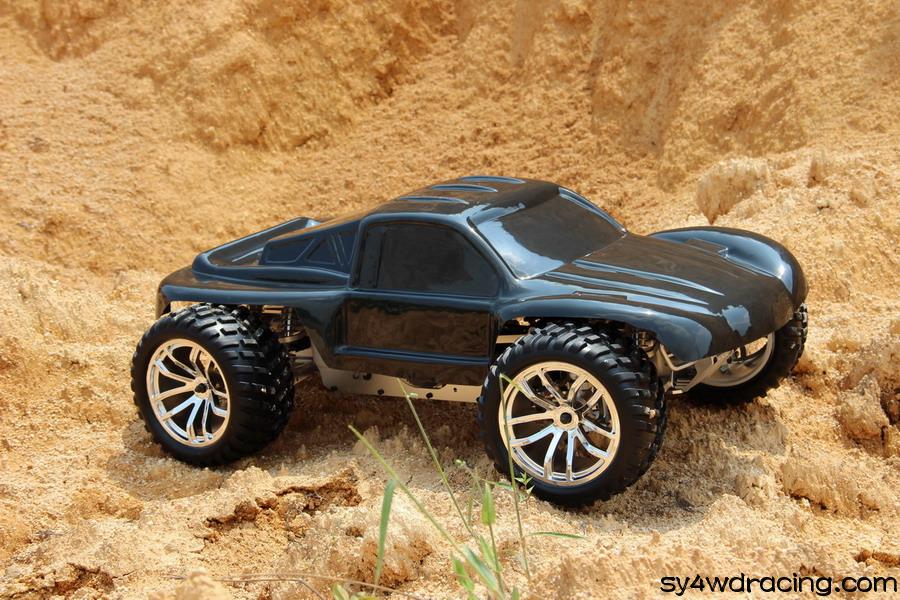

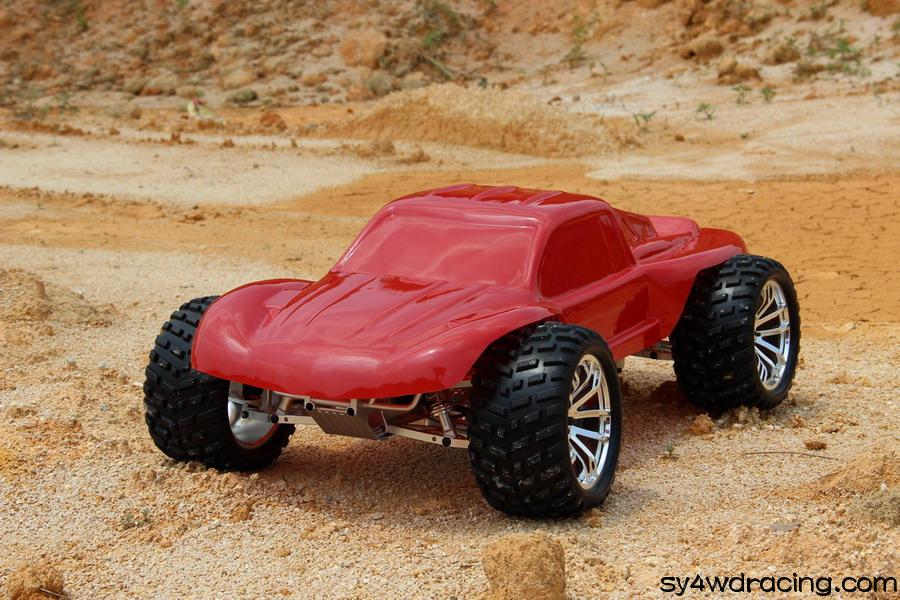

SY S5 PRO (new 1/5 SC version)—Lizard Upgrade Version, 1/5 scale 4×4 SC with reverse. With CY29CC engine.

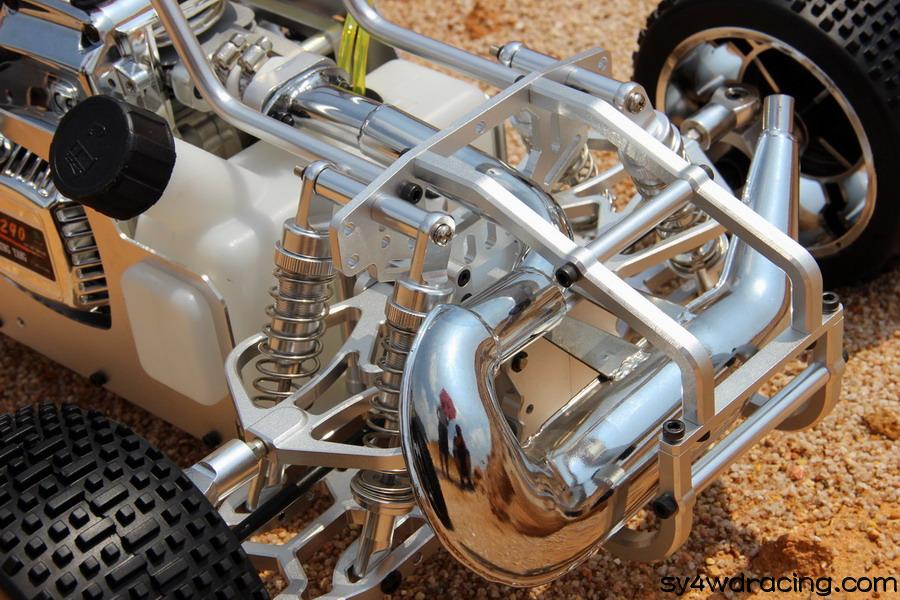

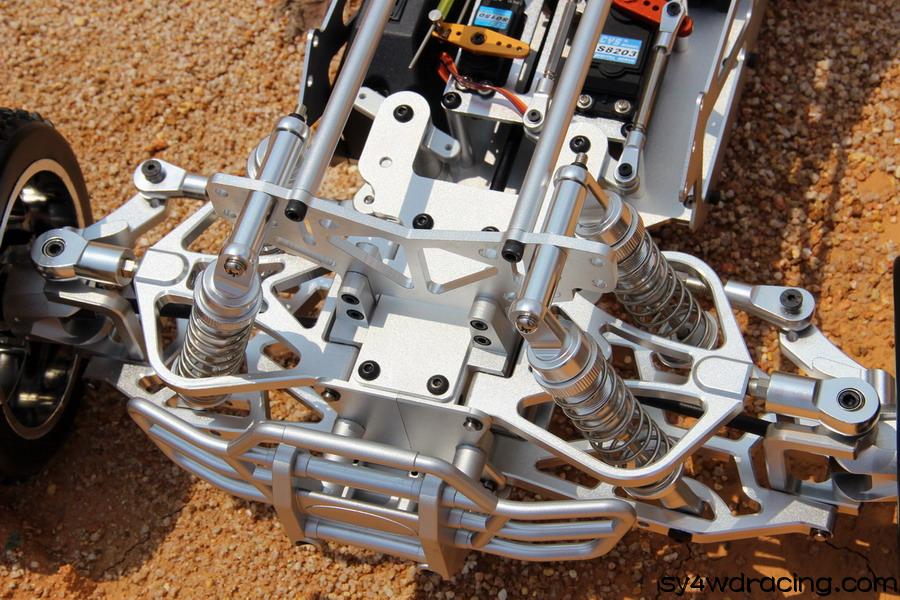

Feature: Long 80cm. The full upgrade version for S5, equipped with upgrade CNC suspension arms, CNC steering arms, CNC“C” seat, CNC rear hub carrier, CNC gear plate, CNC mid gear box cover, CNC diff. gear box cover set, CNC steering set, CNC suspension arm ball end set, CNC ball end set of tie rod, CNC steering ball end set, CNC small gear plate, CNC servo arms, upgrade muffler with CNC rear guard bar.
Technical parameters:
Length ——————– – 800 mm
Width ———————– 540 mm
Height ———————–280 mm
Wheelbase ——————540 mm
Tread (front/rear)————460 mm
Wheel diameter————-175*w80 mm
Weight————————14.30 kg
Engine————————26cc/29cc/30.5cc
Gear ratio———————9.91: 1
Fuel tank———————1000cc
Features:

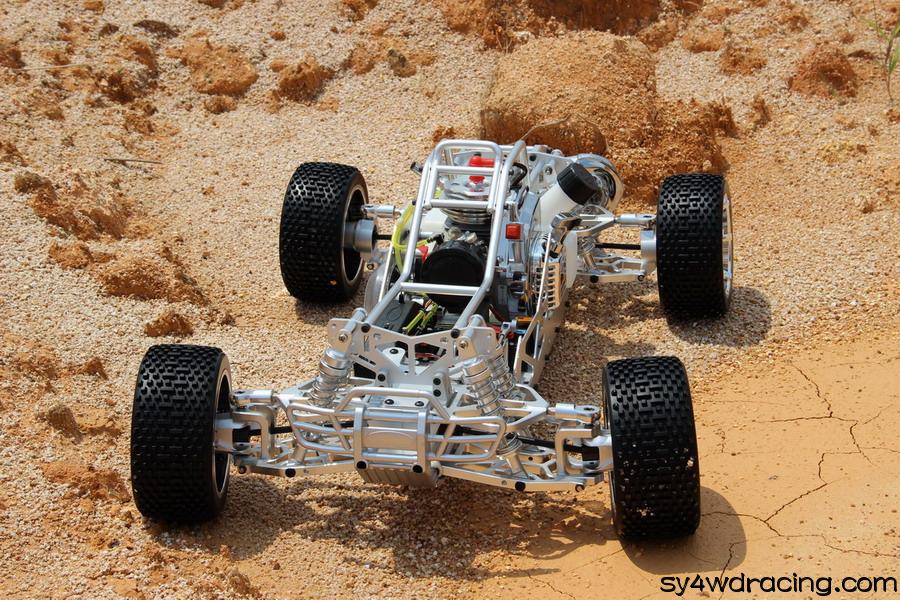

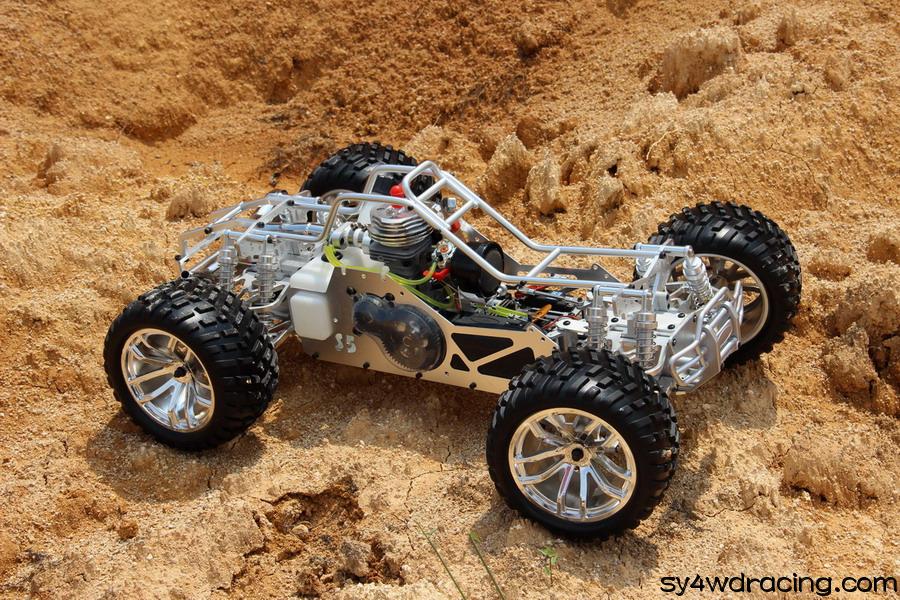

1) Fully assemble ready to run chassis.

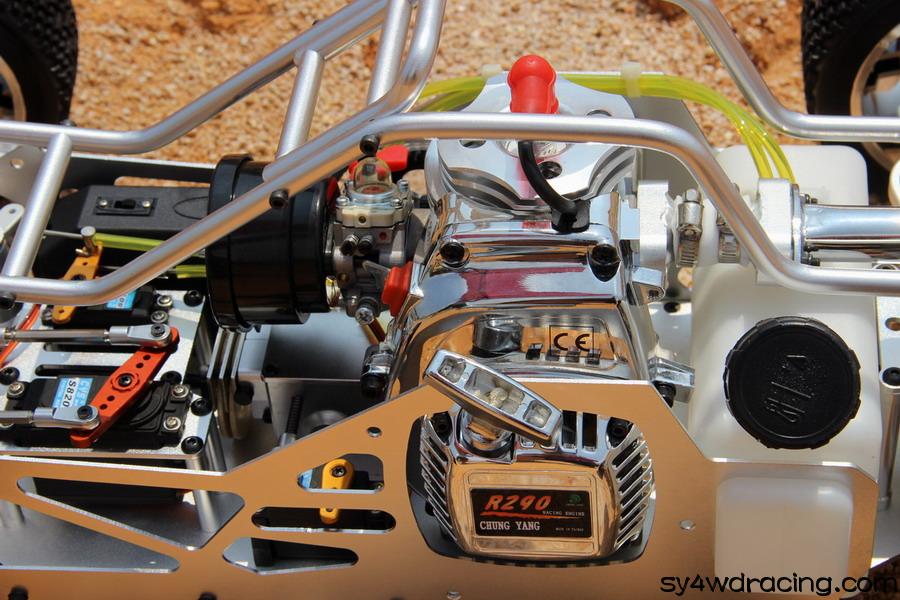

2) Fully powerful CY29cc (made in Taiwan), optional CY26cc/CN26cc, 30.5cc/Kerao RCMK 29CC, 30CC, 60CC engine equipped with slide carburetor pull-starter.
3) Equipped with muffler accelerator and new air filter.
4) 4WD system with shaft drive.
5) Differential with the built-in rear bevel gear.
6) Adjustable width of double fork suspension system.
7) 8 Strong oil-filled shock absorbers
8) Stiff and sturdy 4.0mm 6061-t6 aluminum chassis and side plate.
9) Standard disc break system and optional hydraulic brake system
10) With sensitive Reverse System. Reverse Mid Box – Patent number 201020554772.7
11) Full Steel Differential gears
12) Strong aluminum shed
13) Super sensitive full Metal steering system.
14) Super strong front and rear bumper
15) Aluminum servo plate
16) Super 6.0 aluminum front and rear upper mounting plate
17) 1000CC fuel tank
18) Max speed: 80km/H
19) 2.4G LCD 3-ch radio system
20) 30kg/cm Steering Servo, 15kg/cm full metal throttle Servo and 15kg/cm Servo for Reverse System.
